Hydraulic Platform Mini Scissor Lift Table Platform Hand Pump Mobile Fixed Small Platform Electric Scissor Platform
Product key attributes
| Parameter/Feature | Specification Details |
| Packing | Wooden Box |
| Optional 1 | Remote Control,Foot Step Control |
| Optional 2 | Wheel,Guardrail,Organ Cover,Roller,Rotary Platform |
| Platform Materials | Steel or Stainless Steel |
| Showroom Location | Canada, United States, Italy, Germany |
What is the Fixed Scissor Lift Platform?
Stationary hydraulic elevators serve as permanent vertical conveyance solutions for transporting goods across varying height levels. Characterized by their considerable weight, spatial requirements, and stringent safety protocols, these systems form a unique subset of aerial work platforms classified under lifting equipment regulations. Designed for inter-building layer material movement, their core application remains cargo transfer between operational tiers. Modern implementations predominantly focus on automotive elevation in robotic parking systems and underground vehicle storage facilities.
What are the Benefits of the Fixed Scissor Lift Platform?
Sagafirst scissor lifts receive specialized shot blasting and stoving varnish for enhanced corrosion protection.
Premium pump stations guarantee smooth and stable vertical movement.
Self-lubricating pivot points in anti-pinch scissor arms maximize durability.
Removable hoisting eyes simplify lifting and positioning during setup.
Robust cylinders with built-in drainage and check valves prevent accidental lowering if hoses rupture.
Integrated safety valves prevent overload; adjustable descent control maintains safe speeds.
Streamlined construction ensures user-friendly operation and straightforward maintenance.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model | Rated load (kg) | Lifting stroke (mm) | Maximum height (mm) | Lower height (mm) | Table size (mm) | Lifting time | Motor power (kw) |
| SJG1-1.7 | 1000 | 1700 | 2150 | 450 | 2500×2000 | 20 | 3 |
| SJG10-1.7 | 10000 | 1700 | 2500 | 800 | 4000×2000 | 30 | 11 |
| SJG3-4 | 3000 | 3000 | 3650 | 650 | 1500×6000 | 40 | 5.5 |
| SJG1-4 | 1000 | 4000 | 4600 | 600 | 3100×5000 | 60 | 4 |
| SJG2-5 | 2000 | 5000 | 5900 | 900 | 7000×3000 | 60 | 5.5 |
| SJG3-6 | 3000 | 6000 | 7000 | 1000 | 6000×5000 | 70 | 7.5 |
| SJG5-1.7 | 5000 | 1700 | 2350 | 650 | 6000×2000 | 40 | 7.5 |

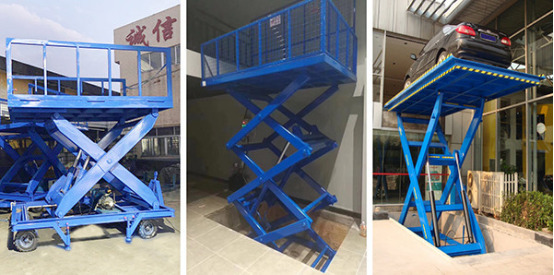

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
|
|
Hydraulic Platform Mini Scissor Lift Table Platform Hand Pump Mobile Fixed Small Platform Electric Scissor Platform Images
|
